Juke Bar 9552 (625W) Dolby Audio Soundbar

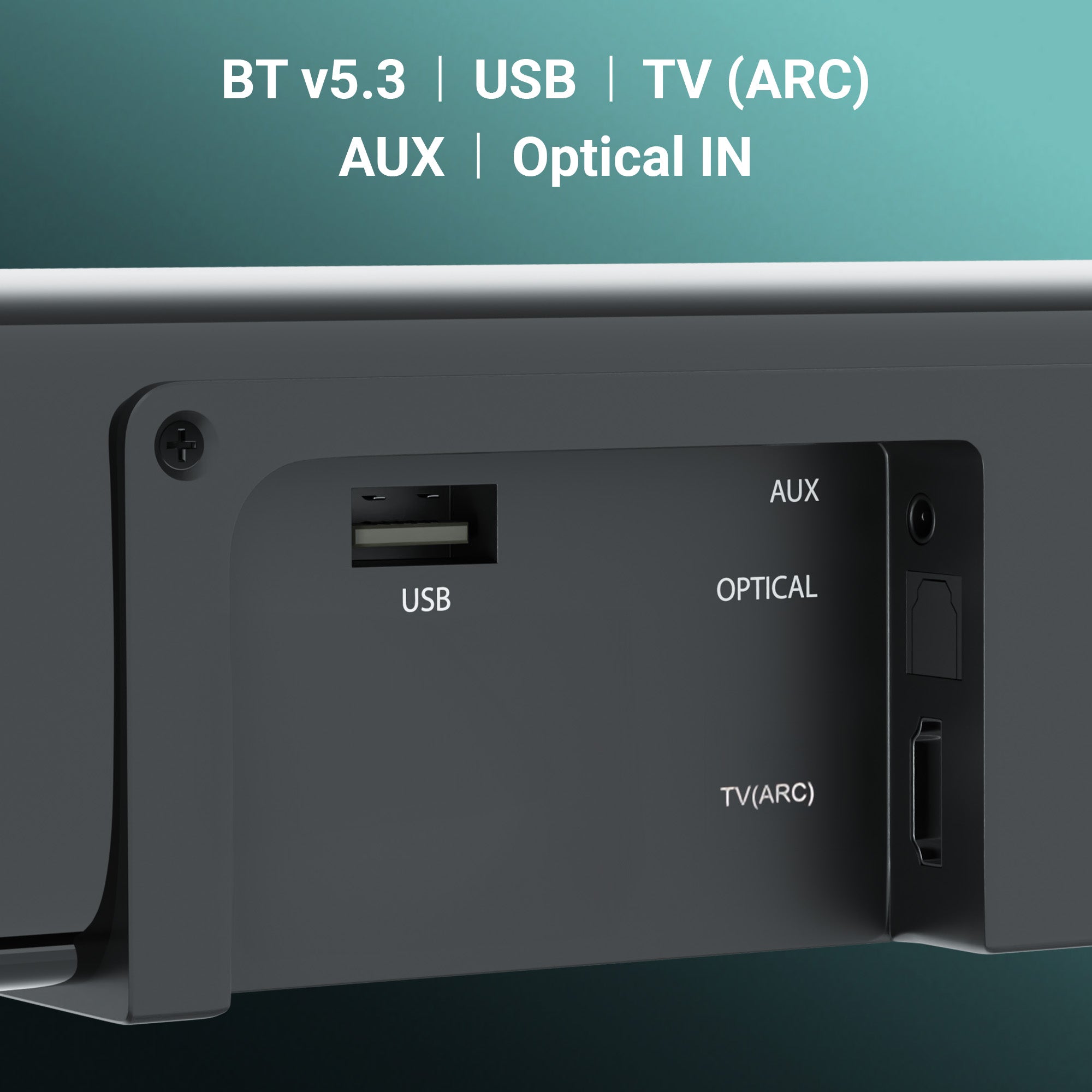

	BT | HDMI (ARC) | Optical IN | USB | AUX
	Dolby Audio

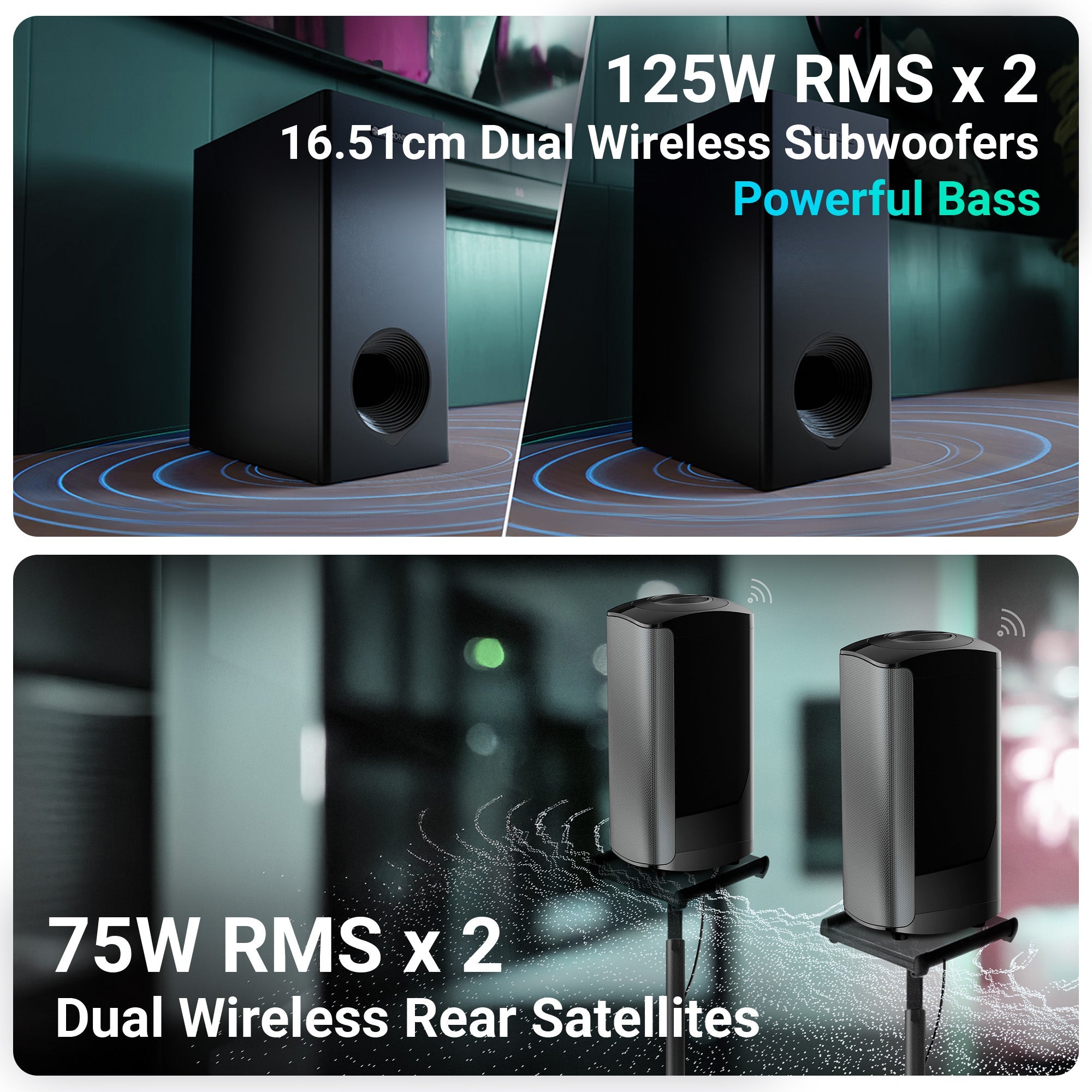

	Dual Wireless Subwoofer

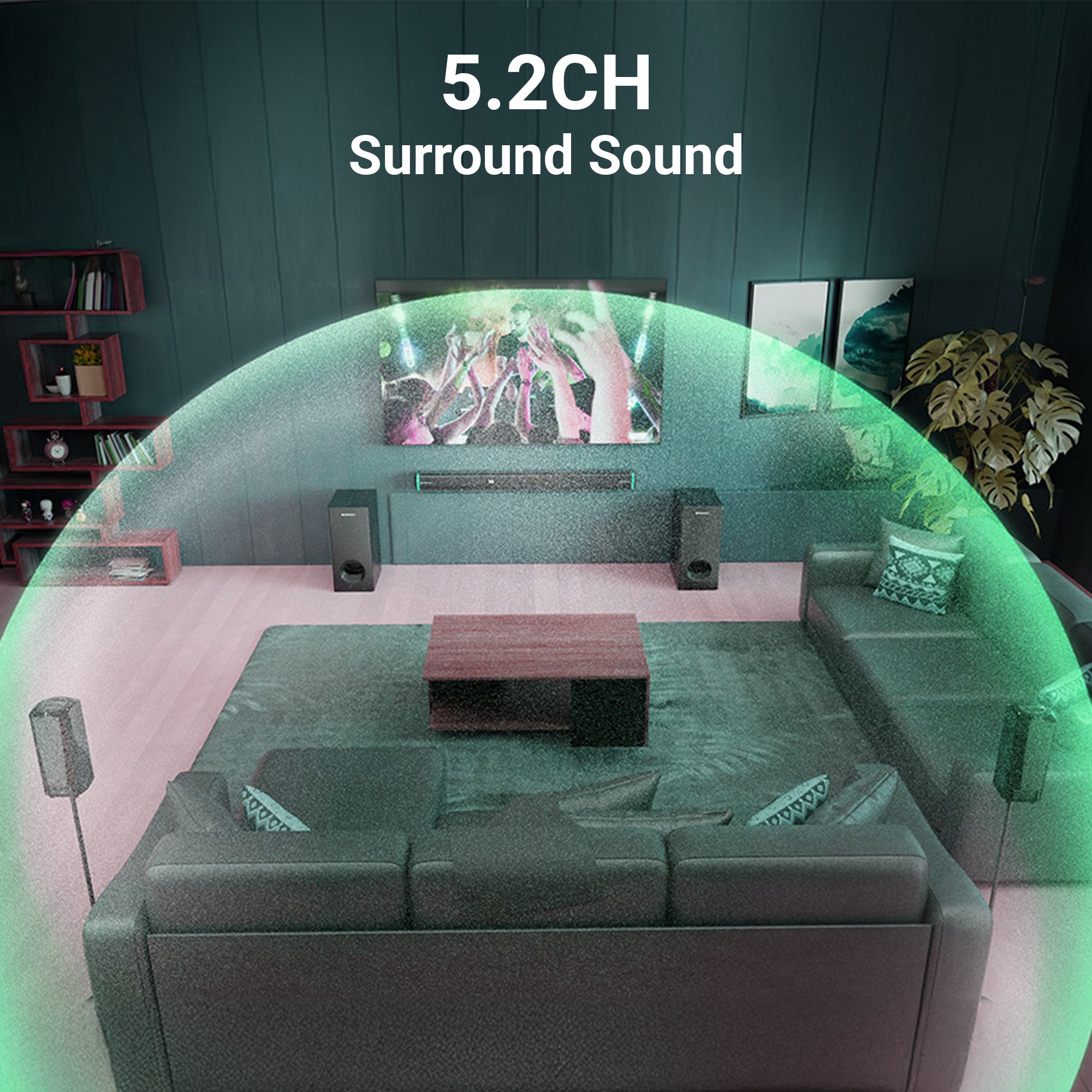

	5.2 CH Surround Sound
	Dual Wireless Rear Satellites

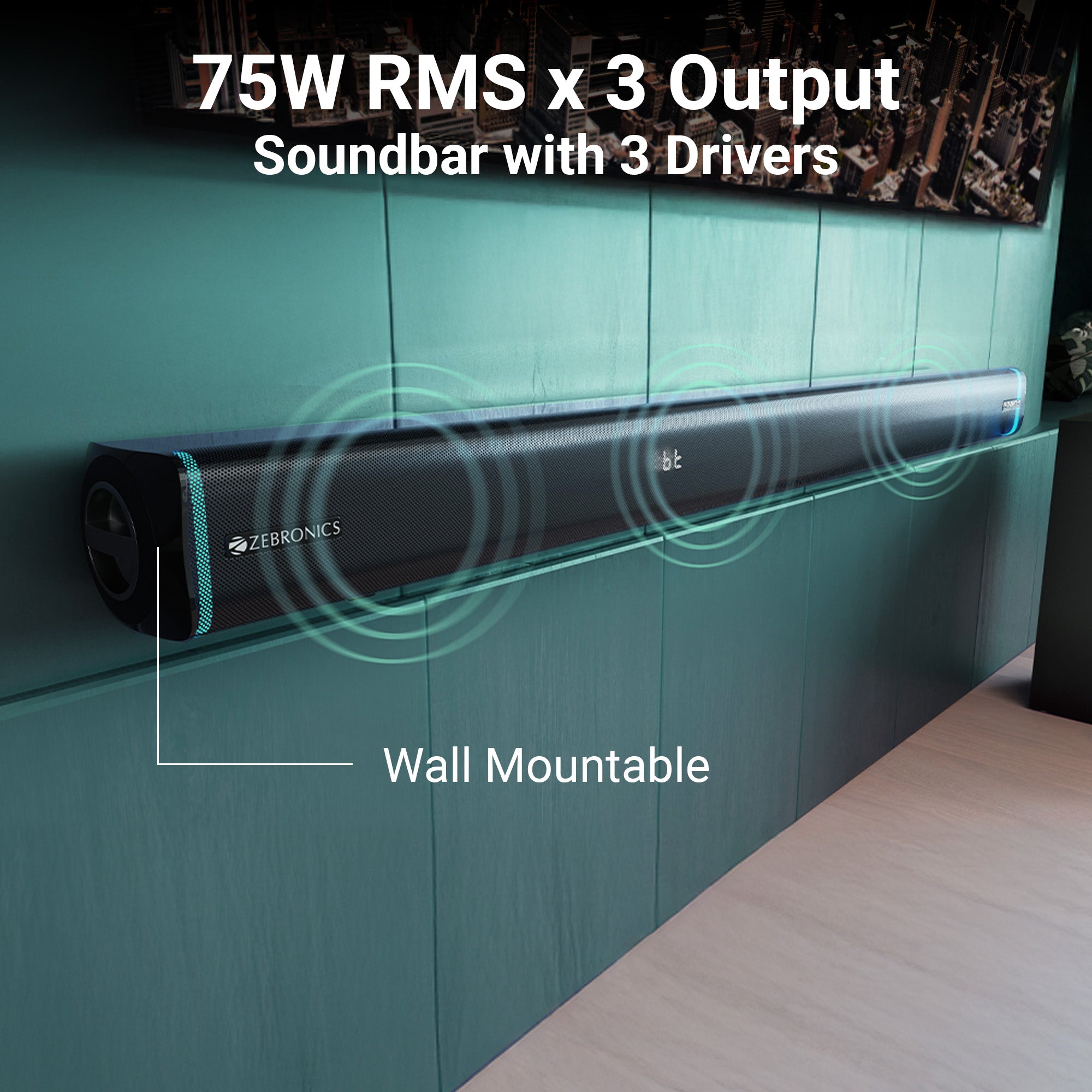

	Soundbar with 3 Drivers
	Wall Mountable

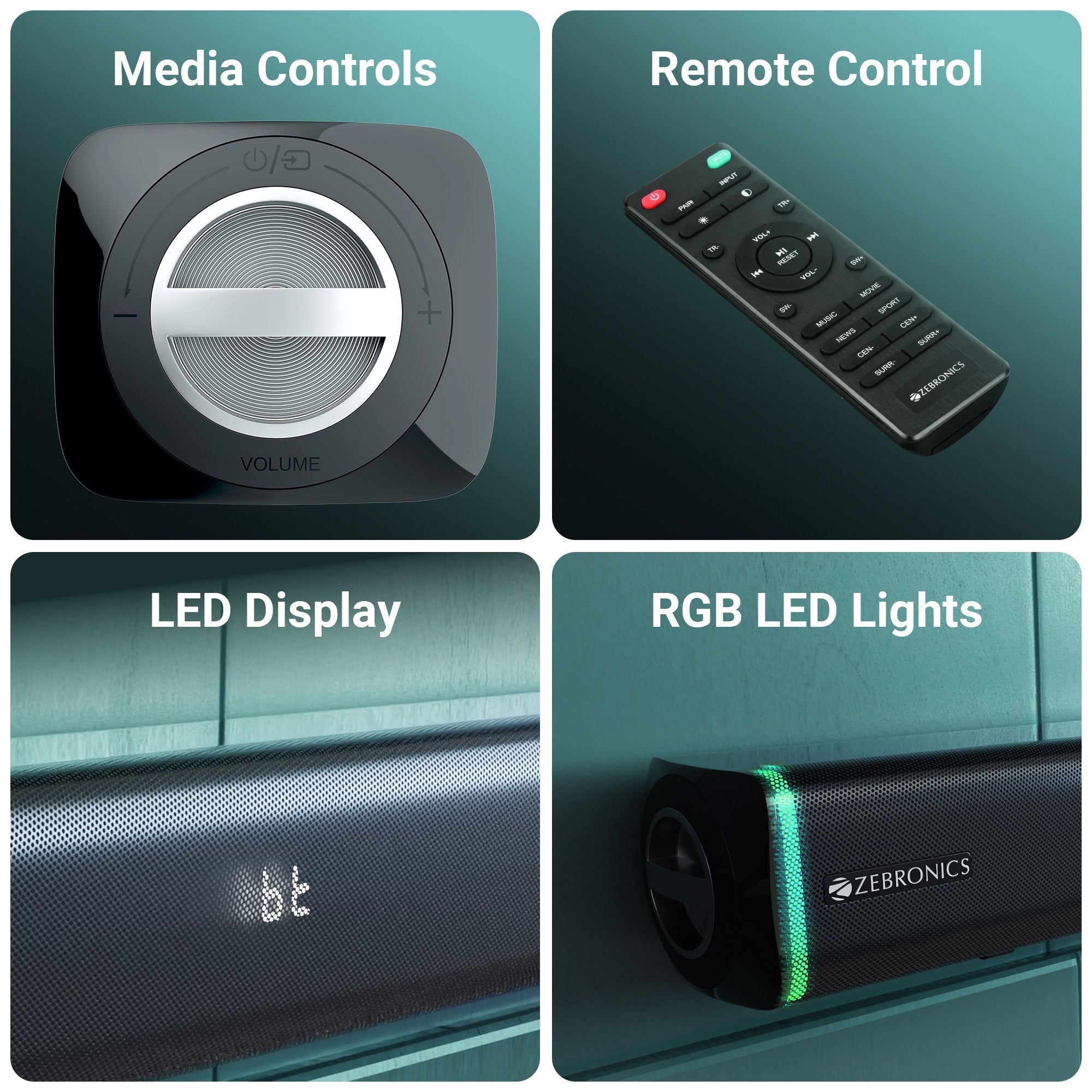

	LED Display
	Remote Control

	Model	ZEB-SBSPK C7
	Output Power
	Subwoofer	125W x 2
	Soundbar	75W x 3
	Satellites	75W x 2
	Total	625W
	Driver Size
	Subwoofer	16.51cm x 2
	Sound bar	(9 cm x 5.8 cm} x 3
	Satellites	(5.8 cm x 9 cm) x 2
	Impedance
	Subwoofer	3Ω x2
	Soundbar	6Ω x 3
	Satellites	6Ω x 2
	Frequency response	40Hz-20kHz
	S/N Ratio	≥70dB
	Separation	≥32dB
	File format support (USB)	MP3
	Line input	3.5mm, Optical IN & HDMI (ARC)
	Max supported memory size (USB)	32GB
	BT name	ZEB-JUKE BAR 9552
	BT version	5.3
	Product Dimension (W x D x H)
	Subwoofer	19 x 30.6 x 36.7 cm
	Sound bar	96 x 9 x 7.2 cm
	Satellites	7.2 x 9 x 19 cm
	Package Dimensions (W x D x H)
	Net.Weight
	Subwoofer	4.3 kg + 4.2 kg
	Sound bar	2.4 kg
	Satellites	550g x 2
	Total	12 kg
	Country of Origin	PRC
	Package Contents
	Sound Bar	1 U
	Subwoofer	2 U
	Satellite	2 U
	Remote Control	1 U
	Input Cable	1 U
	HD Cable	1 U
	Wall Mount Bracket With Fasteners	1 U
	QR Code Guide	1 U
	Power Adapter (Satellite)	2 U

*Satellites are interconnected with a 6-meter cable and powered with a DC adapter provided inside the packaging.
